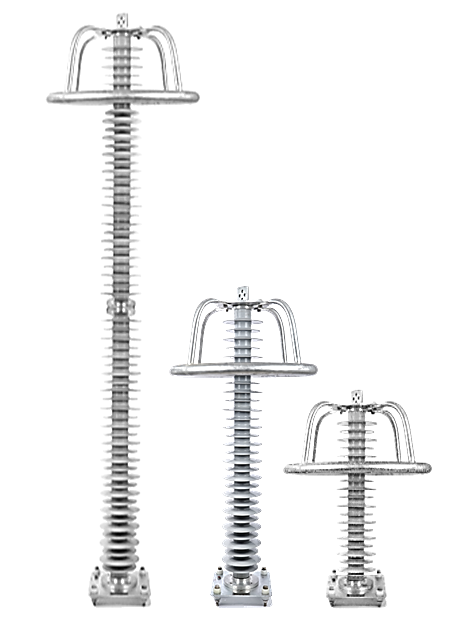

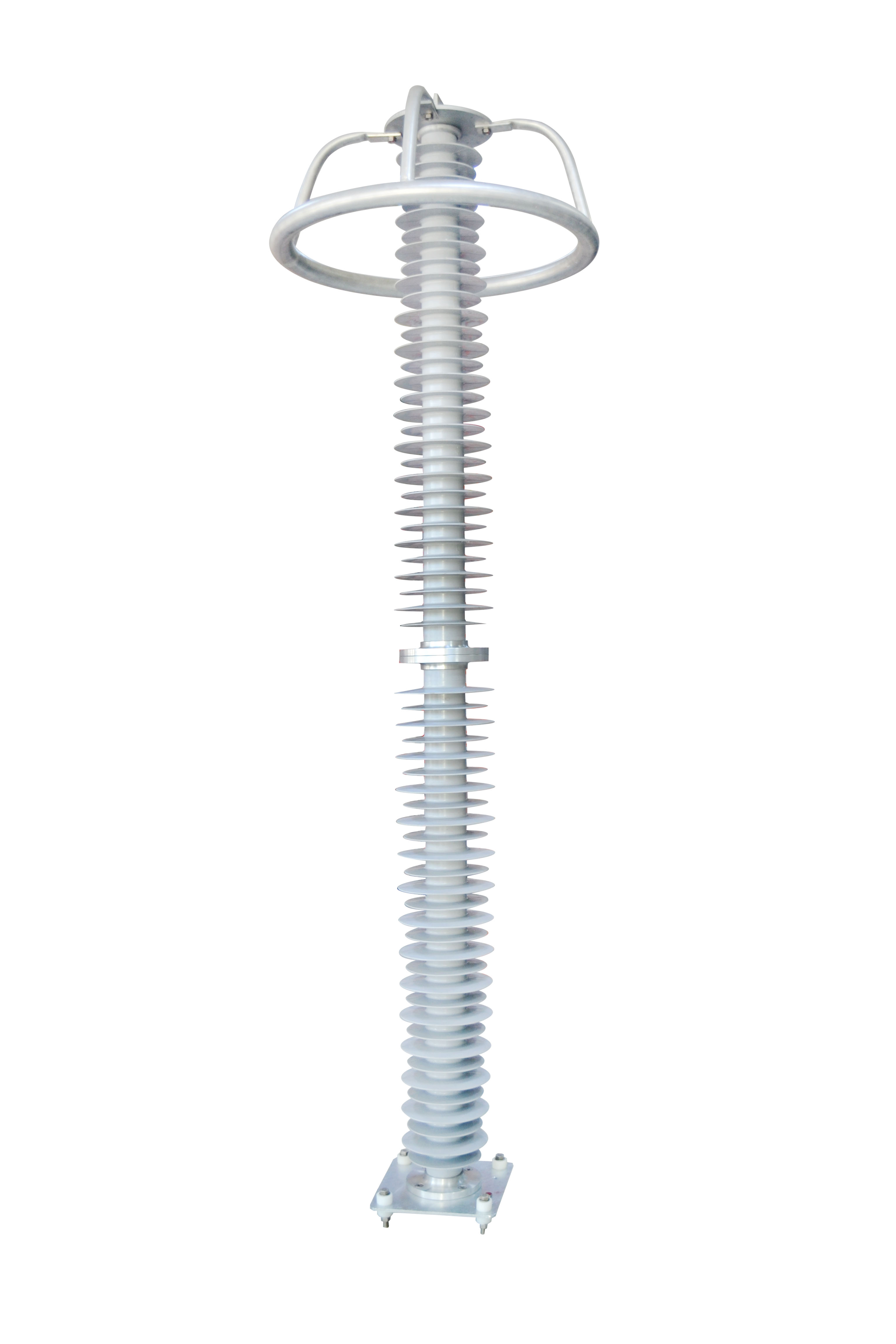

36-420 kV SM (Class 3) High Voltage Polymer Surge Arresters

Application of POLIPAR Metal-Oxide Type  High Voltage   SM  -  Class 3  Polymer Lightning  Surge Arresters (For POWER STATION applications )

>> As a result of over dose voltage and voltage collapse in the system, there exist a load loss on power supply therefore these overvoltage’s causes serious damages the system.

>> This voltage wave which exist in the system is a dangerous situation for modern industry in terms of delicate products in voltage oscillations.

>> It provides protection for control mechanism and transformers against to atmospheric and over switching voltages.

>> It provides high protection for delicate products and equipment according to surge arresters’ usage of system’s installation.

İlgili Resimler

İlgili Videolar

 HY SERIES SM (CLASS 3) HIGH VOLTAGE POLYMER SURGE ARRESTER PROPERTIES

STANDART

: IEC 99-4

  TS EN 60099-4

NOMINAL DISCHARGE CURRENT

: 10 kA peak

RATED VOLTAGE

: 36 - 420 kV

HIGH CURRENTS IMPULSE CAPABİLİTY

: 100 kA (4/10 µs)

LINE DISCHARGE CLASS

: 3 - SM type

SHORT CIRCUIT CAPABILITY

: 65 kA

MINIMUM ENERGY CAPABILITY

: 7.8 kj/kV (Ur)

HIGH CANTILEVER STRENGTH

: 3000 +

AC SYSTEM FREQUENCY

: 50Hz – 60Hz

THE ALTITUDE ABOVE SEA

: 3000 + m

AMBIENT TEMPERATURES

: -55ºC,+65ºC



POLIPAR ANKARA TURKEY
