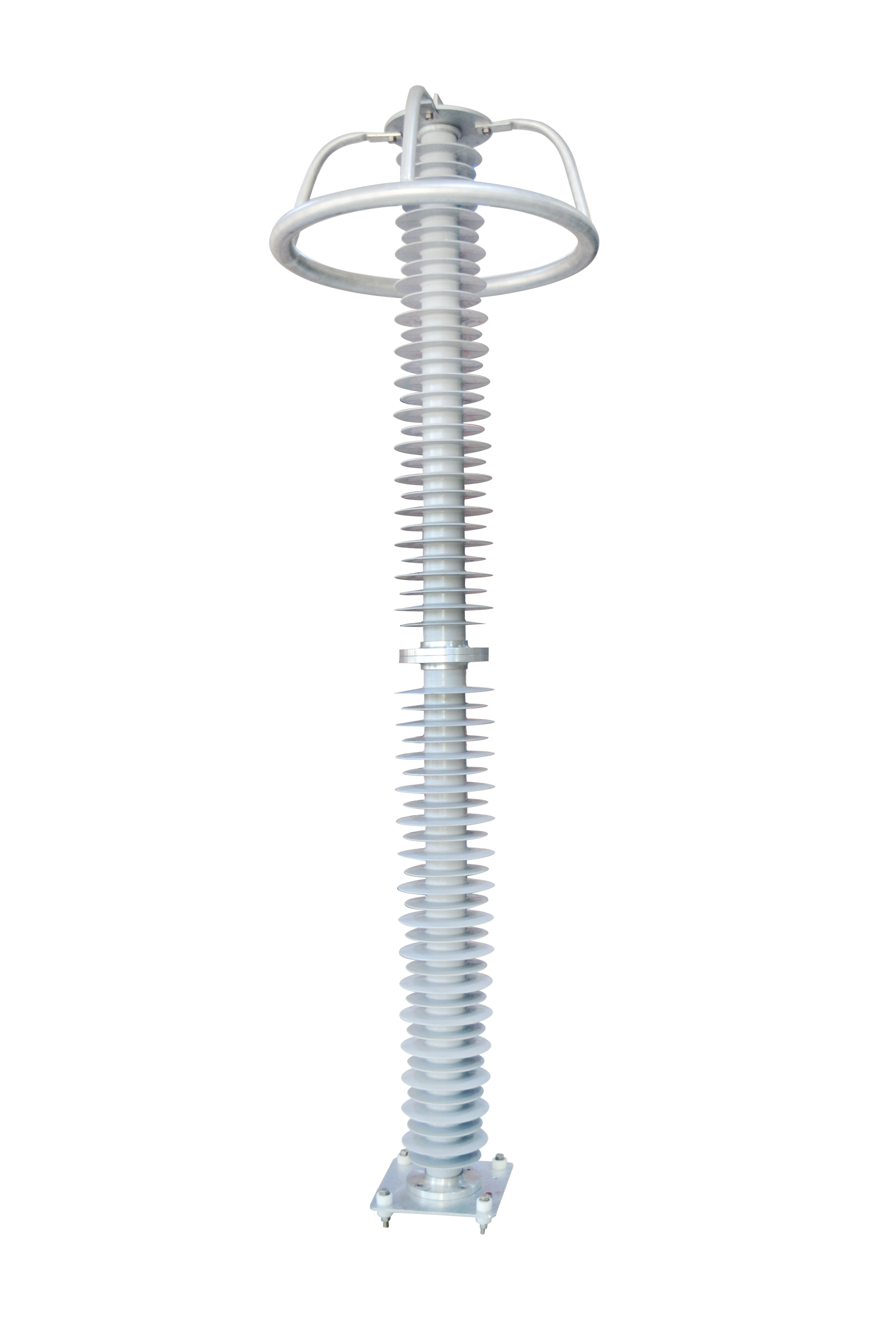

96 - 420 kV SH (Class 4) High Voltage Polymer Surge Arresters

Application of POLIPAR Metal-Oxide type Class 4 - SH  Polymer Lightning Surge Arresters ( for POWER STATION applications )

>> As a result of over dose voltage and voltage collapse in the system, there exist a load loss on power supply therefore these overvoltage’s causes serious damages the system.

>> This voltage wave which exist in the system is a dangerous situation for modern industry in terms of delicate products in voltage oscillations.

>> It provides protection for control mechanism and transformers against to atmospheric and over switching voltages.

>> It provides high protection for delicate products and equipment according to surge arresters’ usage of system’s installation.

Related Images



HY SERIES SH (CLASS 4) HIGH VOLTAGE POLYMER SURGE ARRESTER PROPERTIES

STANDART

: IEC 99-4

  TS EN 60099-4

NOMINAL DISCHARGE CURRENT

: 20 kA peak

RATED VOLTAGE

: 96 - 420 kV

HIGH CURRENTS IMPULSE CAPABİLİTY

: 100 kA (4/10 µs)

LINE DISCHARGE CLASS

: 4 - SH

SHORT CIRCUIT CAPABILITY

: 65 kA

MINIMUM ENERGY CAPABILITY

: 8.5 kj/kV (Ur)

HIGH CANTILEVER STRENGTH

: 3000

AC SYSTEM FREQUENCY

: 50Hz – 60Hz

THE ALTITUDE ABOVE SEA

: 3500 + m

AMBIENT TEMPERATURES

: -55ºC,+65ºC
